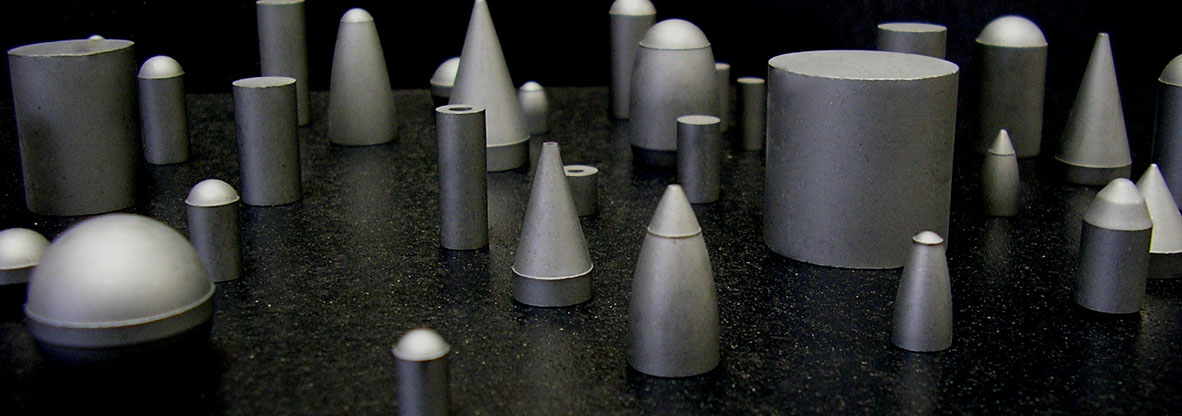

Tungsten Carbide Bur Blanks
Towanda Metadyne manufactures blanks according to the ANSI B94.13 standard while taking care to ensure the microstructure and specific properties important to the application are controlled.
Standard Bur Blank properties:
| Grade | MTG 029 |
| Composition | 94% WC 6% Co |
| Hardness | 91.0 RA |
| Density | 14.95 g/cc |
| Transverse Rupture Strength | 320,000 PSI |
| Compressive Strength | 650,000 PSI |
The types manufactured and stocked are styles:
Click on link for PDF Spec Sheet
BSA - Sizes; 51, 53, 2, 3, 3L, 4, 5, 6, 7, 9, 71, 72- BSB - Sizes; 51
BSC - Sizes; 51, 53, 2, 3, 3L, 4, 5, 6, 7, 9- BSD - Sizes; 51, 53, 2, 3, 4, 5, 6, 7, 9
- BSE - Sizes; 51, 53, 3, 5, 6
- BSF - Sizes; 51, 53, 3, 5, 6, 7, 13, 14, 15
- BSG - Sizes; 51, 53, 2, 13, 3, 5, 6, 7
- BSH - Sizes; 53, 2, 5, 6 ,7
- BSJ - Sizes; 3, 5, 6, 7, 9
- BSK - Sizes; 3, 5, 6, 7, 9
- BSL - Sizes; 53, 2, 3, 4, 5, 6, 7
- BSM - Sizes; 51, 4, 5, 6
- BSN - Sizes; 51, 2, 4, 6, 7
Specials - Many of the above standards can be adjusted to a special by altering the dimensions, adding a hole, lengthening the part length etc. Specific physical information or a print is required to develop a special. Refer to the ANSI B94.13 specification and list for more information on the specific alterations and tolerances required to define the special part.
Bur Blank Identification:
The Bur Blank identification is a developed descriptor using the following details:
Example: BSA-6
·BS - Bur Blank
·A - Type (Cylindrical)
·6 - Size (.640" +/-.005" Diameter X 1.000" +/-.010" Long)
